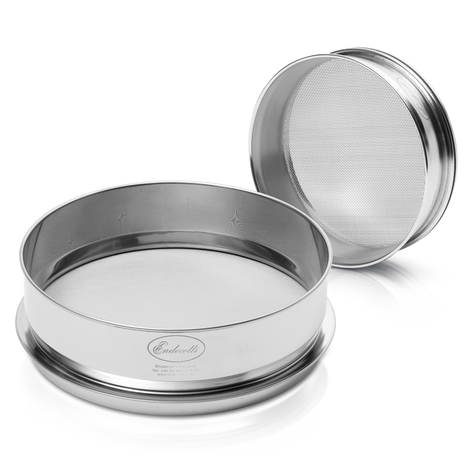

Endecotts woven wire mesh sieves are the most widely used test sieves for all types of laboratory sampling and particle size analysis. They are made with only the highest quality materials and are available in diameter sizes of 100, 200, 300, 400 or 450 mm as well as in 8 or 12 inches. Woven wire mesh sieves can be supplied with aperture sizes ranging from 125 mm down to 20 microns in full and half height versions.
Woven Wire Sieves Product Advantages
- Precision frame (ensures consistent nestability)
- Precise aperture (in accordance with ISO 3310-1, ASTM E11 or other specifications)
- Natural fillet (free flowing of sample)
- Totally sealed (no crevice to lose material)
- Evenly tensioned mesh (ensures accurate analysis)
- Safe edge (big radius makes it comfortable to handle)
- Serial number (ensures full traceability)

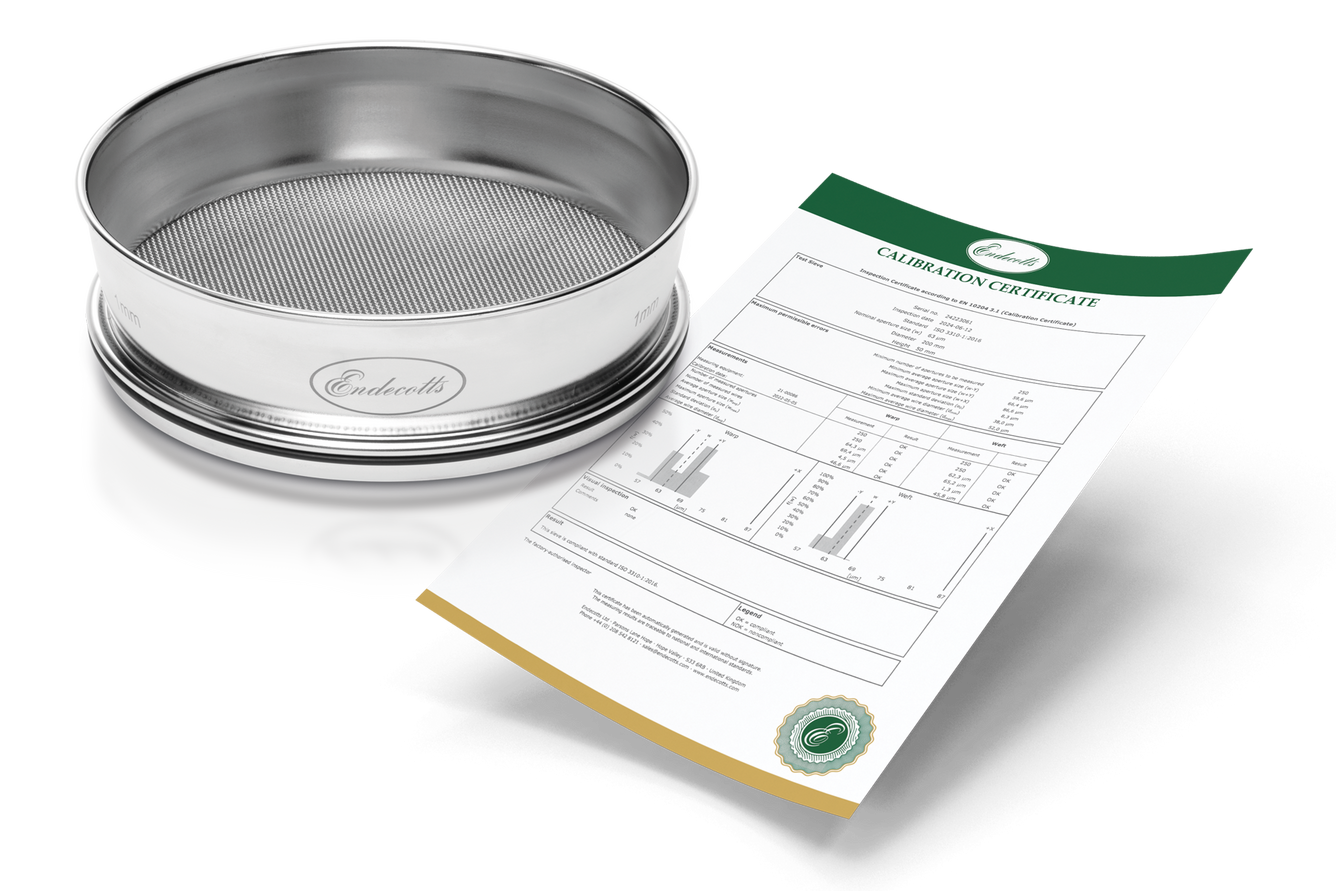

Endecotts test sieves are certified and calibrated right from the shelf
Test sieves are inspected and calibrated in accordance with procedures listed in clause 5.1, table 1 of ISO3310-1 and ASTM E11 respectively. Each sieve is supplied with a Calibration Certificate which includes all the information given previously in the Certifcate of Compliance and more. The certificate records the number of apertures and wire diameters measured, the average aperture size and standard deviation separately for the warp and weft direction. The type of weave will also be stated. Moreover they are individually serial numbered to provide full traceability.
Re-Calibration Service
Used sieves are examined and inspected in accordance with the appropriate specification. Complying sieves are issued with a Calibration Certificate as requested by the customer.
Woven Wire Sieves Technical Data
| Type of mesh: | woven wire |
|---|---|
| Diameter: | 100 / 200 / 300 / 400 / 450 mm 8 / 12 inches |
| Mesh sizes: | 125 mm - 20 µm |
| Frame material: | stainless steel |
| Mesh material: | stainless steel |
| Height: | full and half (200 / 300 mm 8 / 12 inches) height version |
Woven Wire Sieves Downloads
Expert Guide on Sieving
A guidance to the terminology and general information for test sieves and equipment for particle analysis
Product data sheet Woven wire sieves

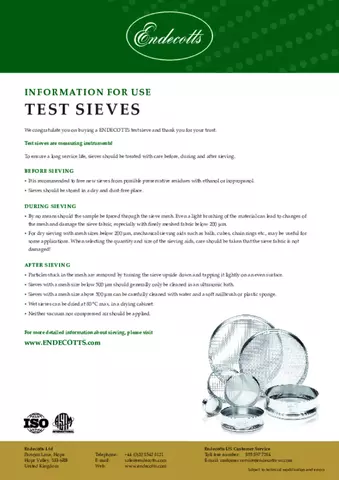

Information for use: Test sieves
