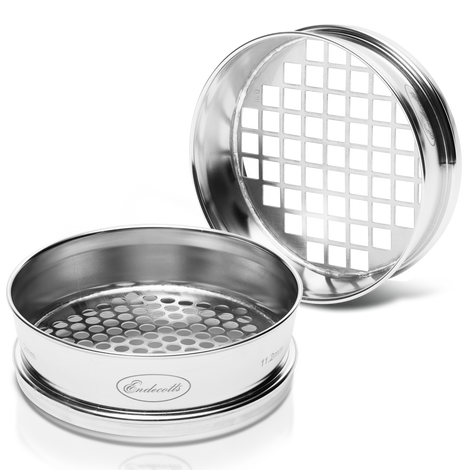

Endecotts manufacture a wide range of perforated plate sieves for the many industries that require them. These are available in diameter sizes of 200*, 300*, 400 and 450 mm. Aperture sizes range from 125 mm to 4 mm in square hole and 125 mm to 1 mm in round hole sieves. Perforated plate sieves can be supplied in frame materials of stainless steel or brass (*200 and 300mm) and are all manufactured to the highest engineering standards to ensure quality and accuracy. Woven wire sieves and perforated plate sieves are available to every national and international standard.
Perforated Plate Sieves Product Advantages
- Precision frame (ensures consistent nestability)
- Precise aperture (in accordance with ISO 3310-2, ASTM E323 or other specifications)
- Natural fillet (free flowing of sample)
- Totally sealed (no crevice to lose material)
- Evenly tensioned mesh (ensures accurate analysis)
- Safe edge (big radius makes it comfortable to handle)
- Serial number (ensures full traceability)
Endecotts test sieves are certified and calibrated right from the shelf
Test sieves are inspected and calibrated in accordance with procedures listed in clause 5.1, table 1 of ISO3310-1 and ASTM E11 respectively. Each sieve is supplied with a Calibration Certificate which includes all the information given previously in the Certifcate of Compliance and more. The certificate records the number of apertures and wire diameters measured, the average aperture size and standard deviation separately for the warp and weft direction. The type of weave will also be stated. Moreover they are individually serial numbered to provide full traceability.
Re-Calibration Service
Used sieves are examined and inspected in accordance with the appropriate specification. Complying sieves are issued with a Calibration Certificate as requested by the customer.
Perforated Plate Sieves Technical Data
| Type of medium: | perforated plate with square or round holes |
|---|---|
| Diameter: | 200 / 300 / 400 / 450 mm |
| Aperture sizes: | 125 - 1 mm round hole, 125 - 4 mm square hole |
| Frame material: | stainless steel / *brass |
| Perforated plate material: | stainless steel / plated steel |
| Height: | full and half height version |
Perforated Plate Sieves Downloads
Expert Guide on Sieving
A guidance to the terminology and general information for test sieves and equipment for particle analysis
Product data sheet Perforated plate sieves
Information for use: Test sieves
